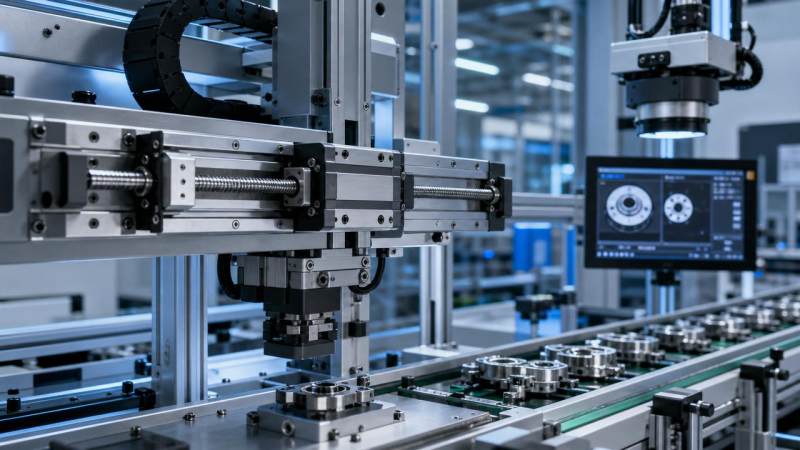

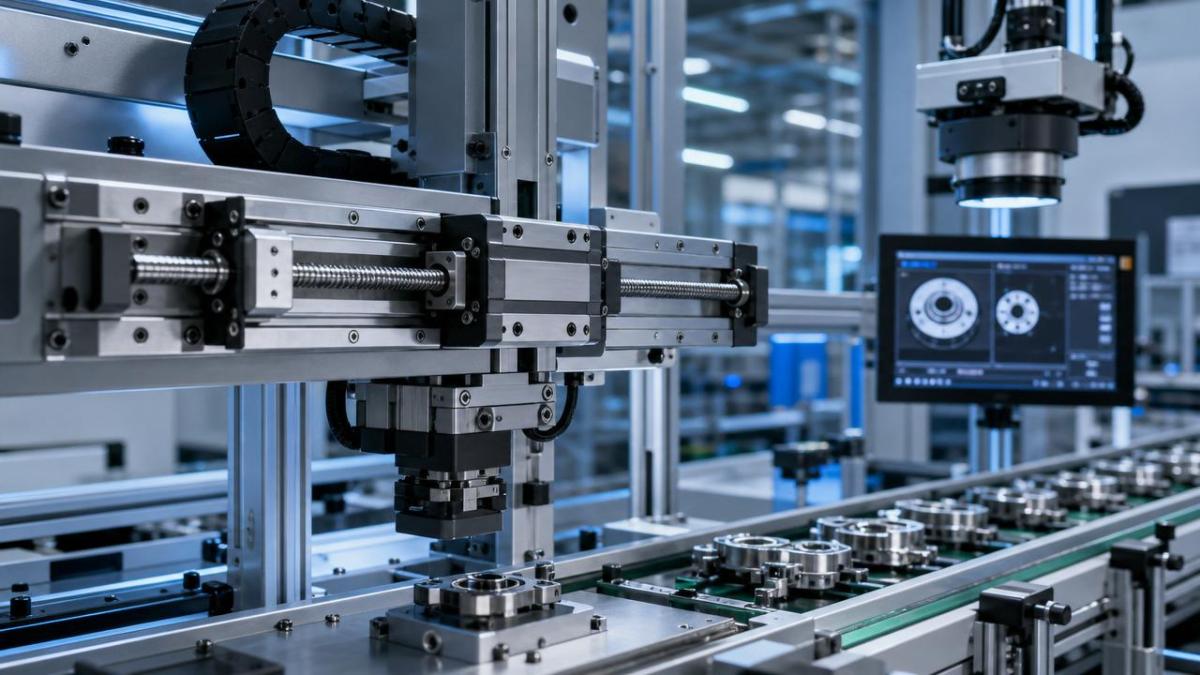

For technical evaluators comparing motion components across industrial applications, linear guide load rating benchmarks offer a practical way to avoid costly sizing errors. By aligning catalog values with real operating loads, duty cycles, and reliability expectations, these benchmarks help teams judge whether a guide is truly suitable for the machine—not just acceptable on paper. This article explains how benchmark-based evaluation improves selection accuracy and reduces automation risk.

In automated production lines, a linear guide that appears acceptable in a catalog can still fail in service if shock loads, cantilevered moments, contamination, or acceleration profiles were underestimated. For technical evaluators, the issue is rarely a lack of data. The issue is whether data from different suppliers is being interpreted against the same benchmark logic.

That is why linear guide load rating benchmarks matter in modern smart manufacturing. They create a common evaluation framework across robotics, assembly systems, inspection stations, packaging equipment, and material handling modules. For organizations using G-IFA style cross-sector benchmarking, this approach supports more defensible specification decisions, lower lifecycle risk, and better alignment between mechanical design and automation uptime targets.

Why load rating benchmarks matter in motion component evaluation

A linear guide is usually selected from a set of headline values: basic dynamic load rating, basic static load rating, allowable moment, accuracy grade, and expected life. However, these values only become meaningful when compared under the same application assumptions. A benchmark turns isolated numbers into a decision tool.

In practical terms, technical teams often review at least 4 dimensions at once: actual payload, moving mass, duty cycle, and reliability target. A guide used 20 hours per day at 40 cycles per minute behaves very differently from one used 8 hours per day at 6 cycles per minute, even if the nominal load is similar.

What a benchmark should normalize

Useful linear guide load rating benchmarks do more than compare catalog load values. They normalize the conditions behind those values. This usually includes orientation, number of blocks per rail, stroke length, moment direction, acceleration peaks, and service environment. Without normalization, a 15% difference in catalog load rating may be less important than a 2× difference in actual shock exposure.

• Basic dynamic load rating versus actual repetitive working load
• Basic static load rating versus peak impact or emergency stop load
• Pitch, yaw, and roll moment capacity under real mounting geometry
• Duty cycle intensity measured by hours, cycles, and speed changes
• Environmental derating from dust, coolant mist, washdown, or temperature

Why sizing mistakes still happen

Many sizing errors happen because teams evaluate only vertical mass and ignore moments. In pick-and-place systems, a 25 kg moving assembly mounted 180 mm off-center can generate a more critical overturning condition than the direct load itself. The same mistake appears in gantries, battery assembly modules, and end-of-arm transfer units.

Another common issue is overreliance on safety factors without understanding the load spectrum. A guide sized with a blanket factor of 2.0 may still be undersized if the machine sees frequent shock events. Conversely, applying a factor of 3.5 in a smooth, servo-controlled application may lead to unnecessary cost, larger rail sections, and increased carriage friction.

Typical consequences of poor interpretation

The direct consequences are not limited to bearing wear. Undersized guides can drive servo instability, alignment loss, seal damage, lubrication breakdown, and reduced positioning consistency. In high-speed automation, even a repeatability drift of 0.03 mm to 0.08 mm can affect downstream vision alignment or pressing accuracy.

To make benchmark review more actionable, the table below summarizes where technical evaluators should focus when comparing linear guide load rating benchmarks across suppliers or machine concepts.

The key takeaway is that linear guide load rating benchmarks work best when they connect rating values to machine behavior. A guide that looks stronger on paper is not always the safer choice if its benchmark assumptions do not match the application’s load path, cycle frequency, or mounting arrangement.

How to use benchmarks to prevent under-sizing and over-sizing

A disciplined evaluation process reduces two opposite mistakes: under-sizing, which creates reliability risk, and over-sizing, which adds cost and packaging penalties. In many automation projects, the best selection is not the highest rating available. It is the guide whose verified capacity matches the load spectrum with an appropriate engineering margin.

Step 1: Define the real operating load case

Start with the complete moving system, not just the payload. Include carriage, tooling, cables, pneumatics, grippers, fixtures, and any process head. In machine builds, the true moving mass is often 10% to 30% higher than the original payload estimate. That difference can materially change bearing life calculations.

Then identify 3 separate load states: normal running load, transient acceleration load, and abnormal peak load. Technical evaluators should also note whether loads are centered or offset. An off-axis load with a 120 mm to 250 mm lever arm can dominate the selection process.

Step 2: Map duty cycle and service life expectation

A benchmark-based method should convert production requirements into mechanical demand. Typical questions include: Will the axis run 1 shift or 3 shifts? Is the target maintenance window every 6 months or every 18 months? Is the machine expected to deliver 5 million cycles or 25 million cycles before overhaul?

This is especially important in smart factories where uptime commitments are strict. In semiconductor handling, EV module assembly, and high-speed packaging, a small guide selection error may not fail immediately, but it can compress the maintenance interval from 12 months to 4 months under continuous operation.

Step 3: Apply benchmark filters before comparing suppliers

Before comparing brands or series, use a fixed checklist. This prevents teams from being distracted by one standout metric. The benchmark should require at least 6 checks: load rating basis, moment capacity basis, life equation method, preload level, lubrication method, and environmental protection level.

1. Confirm how dynamic and static ratings were defined in the catalog.
2. Check whether the proposed block count and rail spacing match the calculation.
3. Review preload class against speed, rigidity, and friction targets.
4. Validate contamination control for dust, chips, coolant, or washdown exposure.
5. Estimate relubrication interval based on hours, stroke, and environment.
6. Test whether emergency stop or crash conditions exceed static thresholds.

A practical comparison framework

The following matrix helps technical evaluators convert linear guide load rating benchmarks into a consistent decision method. It is particularly useful when multiple machine concepts are being screened during front-end design or procurement review.

This comparison shows why benchmark discipline is more useful than isolated catalog review. A heavy-load axis and a high-speed light-load axis can require very different guide characteristics, even when both appear to fit within nominal load limits. Technical evaluators avoid mistakes when they link ratings to duty, moments, and environment together.

Common interpretation errors in industrial purchasing and design review

In procurement and technical review meetings, linear guide load rating benchmarks are often available but not fully applied. The gap is usually not in the supplier data sheet. It is in how decision makers interpret equivalence across models, preload options, and operating conditions.

Mistaking catalog equivalence for application equivalence

Two guide series may both show similar basic dynamic ratings, yet one may be better suited for long-stroke contamination exposure while the other is optimized for compact, high-rigidity assemblies. If the benchmark does not include sealing, lubrication access, and mounting stiffness, teams may select the wrong platform based on a single load figure.

Ignoring moment distribution across multiple blocks

Another frequent error is assuming that adding one more block automatically solves a moment problem. In reality, block spacing, rail spacing, base flatness, and frame rigidity all affect how loads are shared. A nominal 4-block arrangement can still overload one carriage if the structure twists during acceleration.

Overlooking maintenance assumptions

Benchmark-based sizing should include serviceability. If relubrication is expected every 1,000 km of travel or every 3 months, but the plant can only access the axis every 9 months, the chosen guide may be inappropriate even if the load rating is sufficient. This is highly relevant in enclosed automation cells and overhead transfer axes.

Questions evaluators should ask before approval

• What is the highest transient load during acceleration, deceleration, and emergency stop?
• How far is the center of gravity from the rail centerline in all 3 axes?
• What life target is expected: hours, kilometers, or production cycles?
• What contamination level exists: clean, dusty, wet, or particle-heavy?
• How often can lubrication and inspection realistically be performed?

These questions keep linear guide load rating benchmarks grounded in operational reality. They also improve communication between design engineering, automation integration, maintenance, and sourcing teams, which is essential in cross-functional factory investment decisions.

How benchmark-driven evaluation supports lower automation risk

For organizations managing capital equipment risk across multiple production lines, benchmark-driven motion component review is more than a design exercise. It is a governance tool. It helps standardize how components are approved, which matters when factories operate across regions, suppliers, and machine platforms.

Benefits for technical evaluators and procurement teams

When linear guide load rating benchmarks are used consistently, teams can reduce rework during design freeze, shorten supplier clarification cycles, and improve spare-parts planning. In many industrial projects, removing even 1 redesign loop can save 2 to 4 weeks in launch timing, especially when rail machining and base structure revisions are involved.

Benchmarking also improves comparability across global sourcing options. For a hub like G-IFA, the value lies in creating a technical filter that screens motion components against repeatable engineering criteria rather than marketing claims. That supports better decisions for production directors, integrators, and automation engineers evaluating cross-border equipment packages.

Best practices for implementation

A practical rollout usually starts with 3 actions. First, standardize a component evaluation template. Second, define acceptable life and safety margins by application type. Third, require supplier proposals to state the assumptions behind load calculations. This allows faster review and reduces hidden mismatch between catalog data and machine duty.

For example, a factory may define one benchmark set for clean, precision axes under 15 kg payload, another for medium-duty transfer units under 100 kg, and a third for shock-prone heavy automation above 100 kg. Segmenting the benchmark by use case is more effective than using one generic rule for every line.

Linear guide load rating benchmarks help technical evaluators move from assumption-based selection to evidence-based specification. They reduce the chance of underestimating moments, overstating life, or selecting a guide that fits the drawing but not the duty cycle. In advanced manufacturing, that discipline directly supports uptime, precision, and total lifecycle value.
